Description
The BELTWORTH synchronous belt(Timing belt) drive is composed of a closed annular tape with equidistant teeth on the inner surface (the material of timing belt: rubber and PU/polyurethane) and corresponding pulleys. When the transmission is working, the teeth of the synchronous belt mesh with the tooth slots of the pulley to transmit motion and power, so it has various advantages of gear transmission, chain transmission and belt transmission. The synchronous belt drive has an accurate transmission ratio, no slip, can obtain a constant speed ratio, stable transmission, shock absorption, low noise, and a large transmission ratio range, generally up to 1:10, and the allowable linear speed can reach 40m/s. The transmission efficiency is high, generally reaching 98%-99%. Delivering power from a few watts to hundreds of kilowatts. The compact structure is also suitable for multi-axis transmission, with low tension force, no lubrication, and no pollution, so it can work normally in situations where pollution is not allowed and the working environment is relatively harsh.
Products Description:
Structure:
Belt body: The imported CR rubber or HNBR rubber with high quality from Japanese companyReinforcement: The imported fiberglass cord with excellent quality from Japanese company or German company.
Belt tooth: Nylon 66 fabric with high spandex as the tooth protection materials.
Characteristic：
1. Excellent dynamic curve performance
2. Crack resistant
3. Ozone resistant
4. Anti-aging
5. Heat Resistant
6. Wear resistant
Double Tooth Synchronous Belt (Timing Belt):
There are two types tooth for the Double Tooth Synchronous Belt (Timing Belt
DA type is Symmetrical Tooth.
DB type is staggered Tooth.
The width of the Synchronous Belt (Timing Belt)
The width is 450mm to 480mm
MOQ is 1 sleeve (we have existing molds) to 5 sleeves (we have no existing mold)
The customers can cut the available width with sleeve cutting machine according to their requirement.
Open End Rubber Synchronous Belt (Timing Belt)：
We can deliver open endless Synchronous Belt (Timing Belt) as produced one time, there is black fabric on the surface and the tooth. The max width of belt is 10mm to 120mm for all types. Profiles are 3M,5M,8M,14M, S3M, S5M, S8M, MXL, XL, L, H etc. The length is cut to order, or can be purchased as a full roll. Specialized for applications such as conveying, linear motion, metering, positioning, etc. Normally, our clients need the rubber open endless Synchronous Belt (Timing Belt) as the widths are 10mm, 12mm, 15mm and 25mm, the length is 100 meters per roll.

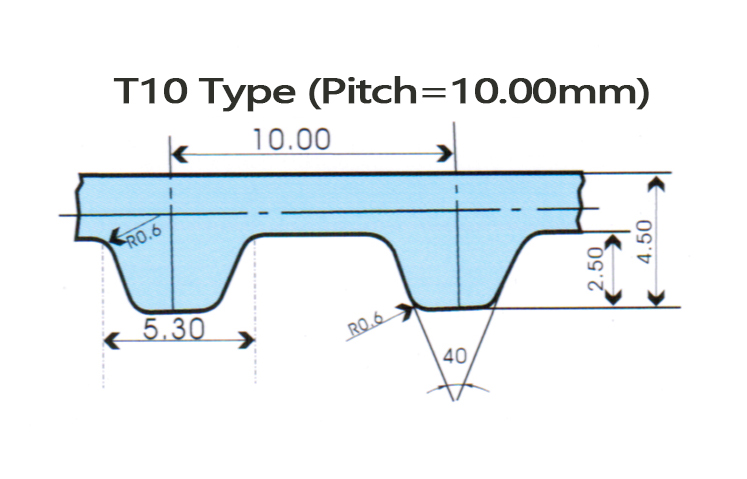

Belt Profile：
Example of Marking:
Application
The BELTWORTH synchronous belt(Timing belt) are widely used in automobile, tobacco, textile, printing, glass, chemical industry, light industry, metallurgy, instrumentation, mining, petroleum, machine tools, SMT, computer printing, food packaging and other mechanical equipment transmission.
