Description
BELTWORTH V-RIBBED Belts are ideally suited for high speed, and or high drive ratio applications that conventional V-Belts just cannot handle. BELTWORTH V-RIBBED Belts offer smooth vibration-free performance in a single compact drive belt. Well suited for applications such as appliances, outdoor power equipment, roller conveyors, machine tools, medical equipment and exercise equipment. Fiber Reinforced Ribs for excellent wear resistance, High modulus, low stretch tensile member for added strength and dependability, smooth running for minimal vibration at high speeds, up to 80% higher horsepower capacity than RMA standards, o il and heat resistance and statically conductive. We have sections are: (PH, PJ, PK, PM, PL available).
Detailed Description:

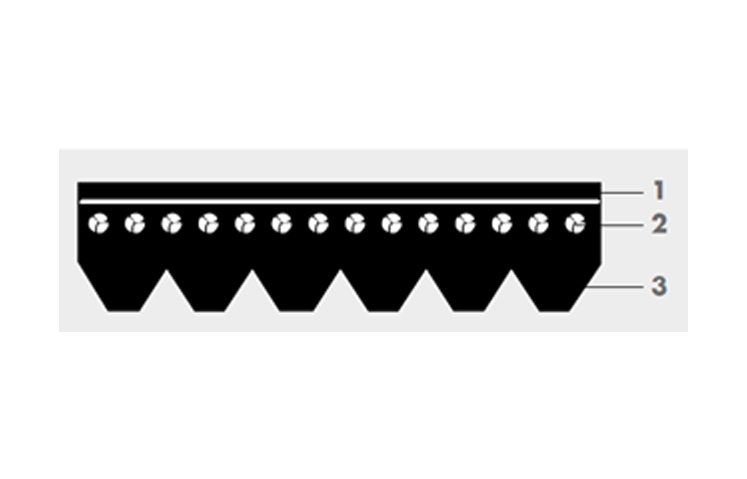

Structure:
1. Belt top surface: wear
resistant polychloroprene rubber compound
2. Tension Cord: Low-stretch
polyester cord embedded in an adhesive rubber compound.
Characteristics:
1. Combines the high flexibility of the flat belt with the high-power transmission capability of the traditional V-belts
2. Small pulley diameters
3. Large speed ratios possible
4. Good frictional power transmission and high-power transmission capability
5. Insensitive to torque impulses and short-term overloading

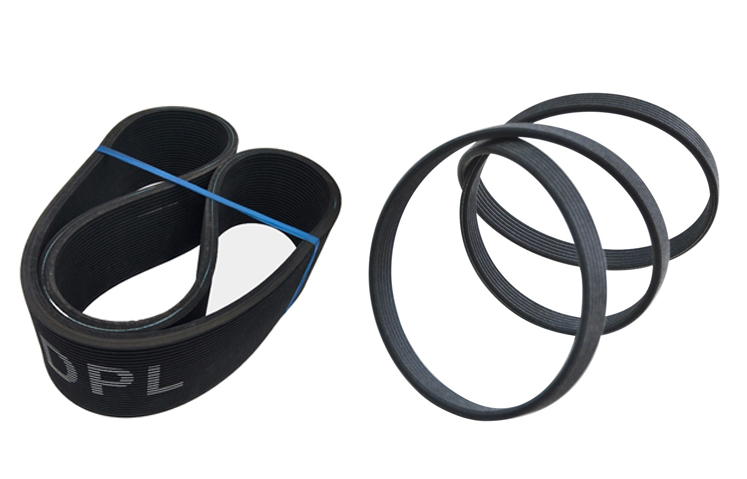

Double Ribs Mulit-Ribbed Belt:
There are two types tooth for the Double Ribs Mulit-Ribbed Belt
PK type and PL type.
The Ribs of the BELTWORTH V-RIBBED Belts
PJ Type Ribs is 200 ribs
PK Type Ribs is
126 ribs
PL Type Ribs is
100 ribs
Application:
Profile PH
Domestic appliances, medical appliances, machine tools,small conveyors, conveyor belt, paper transport machines
Profile PJ
Small compressors, cement mixers, white goods, small
tools
Profile PK
Fans, air conditioning, concrete saws, wood saws,
industrial washing machines
Profile PL
Compressors (> 30 kW), industrial washing machines
Profile PM

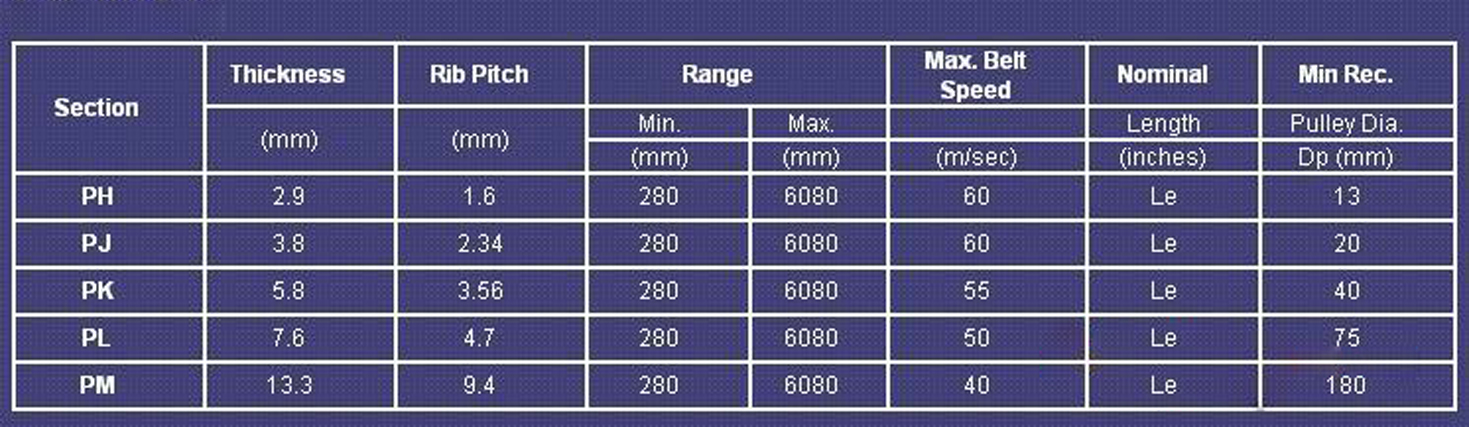

Profile:
